空壓碟式制動器離合器當前位置：首頁 > 空壓碟式制動器離合器
- NAC空壓通軸式離合器（氣動離合器） 品牌：天機傳動
型號：TJ-NAC
扭矩：50~400Nm
類型：空壓通軸式離合器（標準型）又稱氣動離合器
訂購熱線：13316607853
商品介紹
天機傳動TJ-NAC型空壓通軸式離合器(標準型)又稱氣動離合器，靠空壓來連結，靠復歸彈簧來放開。圓盤靠空氣壓沿軸方向滑動，接觸摩擦板。圓盤、摩擦板等，被組裝到輪轂上，成為一體化構造。摩擦板可用擰開調整螺帽的方式進行分解，交換簡單。
TJ-NAC型空壓通軸式離合器（氣動離合器）特性如下：
1、小型、輕量、廣域的轉矩調整范圍；
2、轉矩可由空氣壓來進行廣范圍的調整；
3、安全系數高不產生電氣火花、適用于高頻度連續滑移使用；
4、在高頻度、高負荷、連續滑移等的過酷條件下也很耐用。能夠作為轉矩限制器來使用；
5、平穩停止簡單、靠空氣壓的調整，能圓滑實現啟動；
6、壽命長，保養容易、放熱效果好，因摩擦板厚，所以使用壽命長。

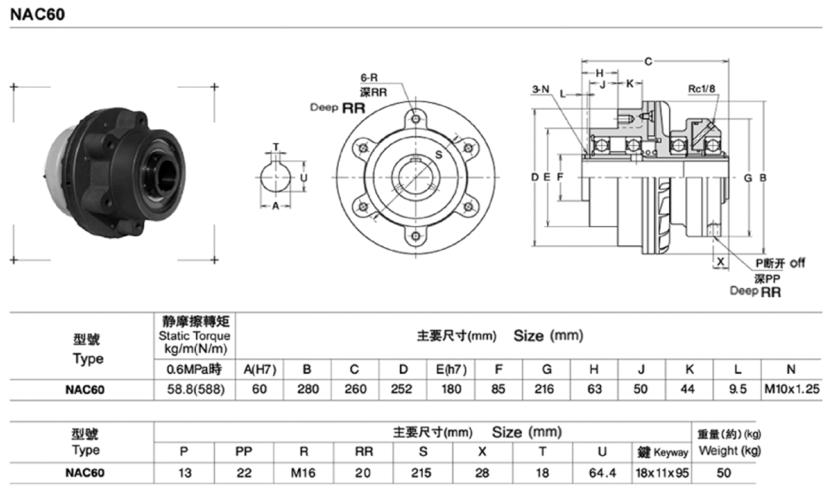

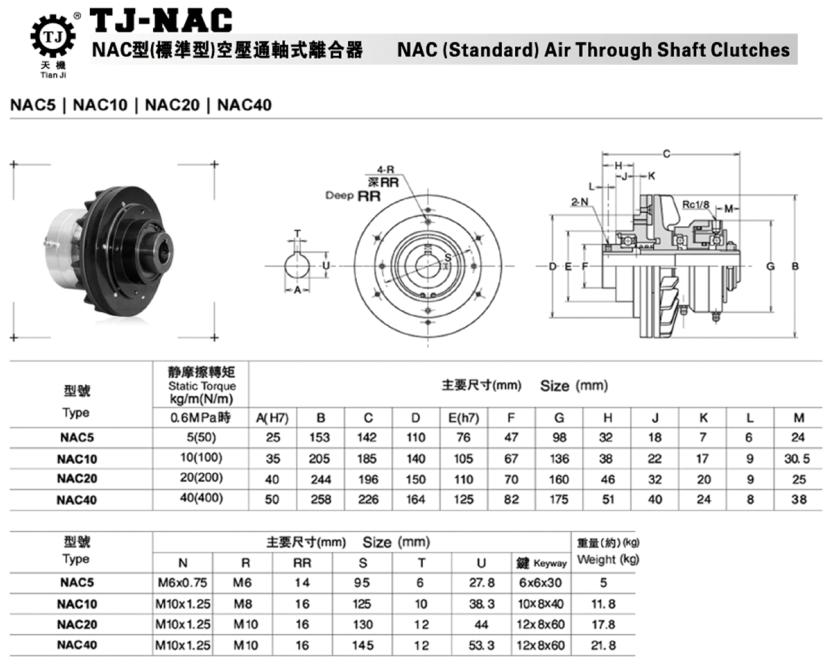

TJ-NAC型空壓通軸式離合器（氣動離合器）尺寸安裝規格參數如下：
